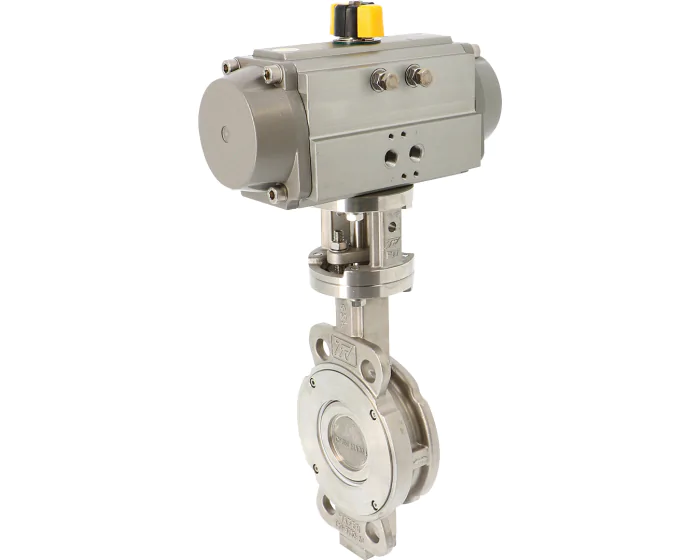

The 1119 wafer double offset butterfly valve consists of stainless steel body and dis, and PTFE seat It is actuated with ALPHAIR pneumatic actuator sized for 6 bar air supply. PS: 40 bar. Between flanges PN10/16/40 and ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 20 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | PTFE |
| PS (bar) | 30 |
| Connections | Between flanges PN10/16/40 #150 |
| Seats | PTFE |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | High performance butterfly valves |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN50 - 2'' Double acting | 264020017008R | S1002220 |
€786.51
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN50 - 2'' Spring return | 264020017110R | S1002221 |
€946.51
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN65 - 2''1/2 Double acting | 264021017008R | S1002222 |
€926.43
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN65 - 2''1/2 Spring return | 264021017110R | S1002223 |
€1,086.43
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN80 - 3'' Double acting | 264022017008R | S1002224 |
€1,044.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN80 - 3'' Spring return | 264022017111R | S1002225 |
€1,337.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN100 - 4'' Double acting | 264023017009R | S1002226 |
€1,214.99
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN100 - 4'' Spring return | 264023017112R | S1002227 |
€1,526.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN125 - 5'' Double acting | 264024017009R | S1002228 |
€1,415.09
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN125 - 5'' Spring return | 264024017112R | S1002229 |
€1,730.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN150 - 6'' Double acting | 264025017011R | S1002230 |
€1,814.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN150 - 6'' Spring return | 264025017113R | S1002231 |
€2,272.83
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN200 - 8'' Double acting | 264026017013R | S1002232 |
€2,886.06
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset DN200 - 8'' Spring return | 264026017115R | S1002233 |
€3,795.87
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset Double acting DN250 - 10'' | 264027017014R | S1002234 |
€3,955.40
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset Spring return DN250 - 10'' | 264027017116R | S1002235 |
€5,040.57
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset Double acting DN300 - 12'' | 264028017015R | S1002236 |
€4,757.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Stainless steel CF8M (1.4408) Double offset Spring return DN300 - 12'' | 264028017118R | S1002237 |
€6,688.30
(excl. btw)
|
add to cart |
